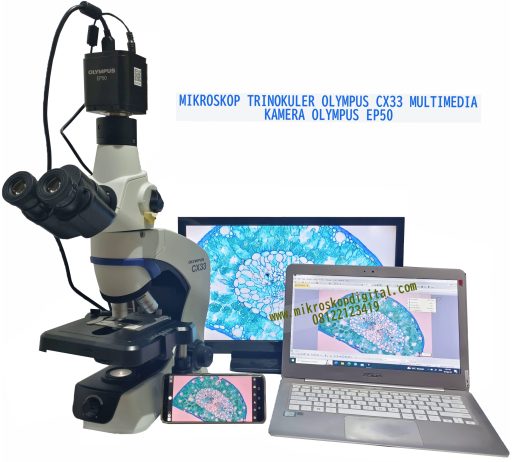

Spesifikasi Mikroskop Trinokuler Olympus CX33

• Eye Piece : 10X | 20mm
• Field of View : 48 – 75 mm
• Objectives lens with 4X, 10X, 40X and 100X Plan Achromat, anti-fungal objectives
• Condenser- Abbe condenser NA 1.25 with oil immersion
  – Built-in aperture iris diaphragm
• NosepieceFixed quadruple nosepiece with inward tilt
• Stage :
• – Wire movement mechanical fixed stage, (W x D): 211 mm x 154 mm
• – Traveling range (X x Y): 76 mm x 52 mm
  – Single specimen holder (optional: double specimen holder, sheet holder )
  – Specimen position scale
  – Stage XY movement stopper
• Illumination :
  – Built-in transmited illumination system
  – Kohler illumination (fixed field diaphragm)
  – LED power consumption 2.4 W (nominal value), precentered
• Focus- Stage height movement (coarse movement stroke: 15 mm )
  – Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper
  – Torque adjustment for coarse adjustment knob
  – Fine focus knob (minimum adjustment gradations: 2.5 um)

Spesifikasi Kamera Olympus EP50

• Image Sensor     1/1.8 inch Colour CMOS
• Resolution (max.) :    2592 (W) × 1944 (H) pixels (Snapshot only), 1920 (W) × 1080 (H) pixels (HDMI, WLAN, on PC)
• Pixel Size (μm)     2.4 × 2.4
• Binning :    No
• A/D Converter    : 8 bits
• Exposure Times (msec) :    1 – 918
• Live Frame Rates (fps) :    Up to 30 (Full HD 16:9 on PC), up to 60 (HDMI Output) and up to 25 (WLAN Output)
• Cooling System :    No
• External Trigger :    No
• Data Transfer  :   HDMI, WLAN (using the WLAN adaptor), Ethernet (using the USB-to-Ethernet adaptor)
• Partial Readout :    Yes
• PC Control:     Windows 10 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 7 (32/64 bit)
• Stand Alone :    Yes
