Spesifikasi Teknis

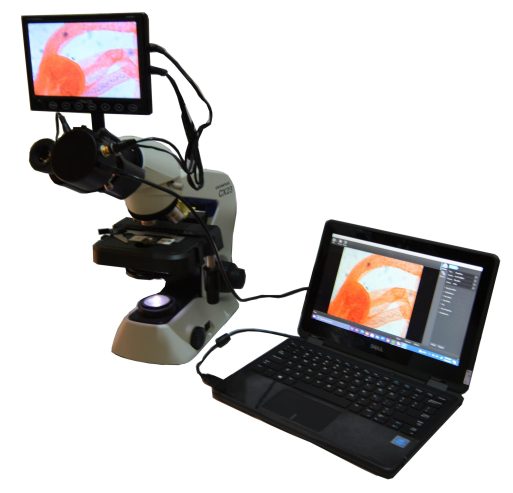

Mikroskop Binokuler Olympus CX23
– Model: CX23LEDRF (S1 / S2)
– Bodi : Alumunium die Casting dengan frame logam
– Sistem Optik : Sistem optic infinity
– Sistem Pencahayaan: LED (Light Emitting Diode), konsumsi daya 0,5 W
– Lensa Objektif : Menggunakan plan akromat, anti-fungus
4X , NA: 0.10 W.D: 27.8 mm
10X, NA: 0.25 W.D: 8.0 mm
40X, NA: 0.65 W.D: 0.6 mm
100X Oil, NA: 1.25 W.D: 0.13 mm
• Lensa Okuler: 10X, FN ; 20, anti-fungus
• Tabung Pengamatan: Binokuler, dapat di gerakkan dengan jarak antar okuler 48 -75 mm
• Meja Objek : Mechanical fixed stage dengan penjepit specimen. Gerakan penjepit 76 mm (X) x 30 mm (Y)
• Dimensi : 198 (W) X 258 (D) X 384 (H)
• Berat : 5,9 Kg
• Power : AC 100-240 V, 50/60 Hz, 0.4 A
• Konsumsi Daya : Kurang dari 2 W

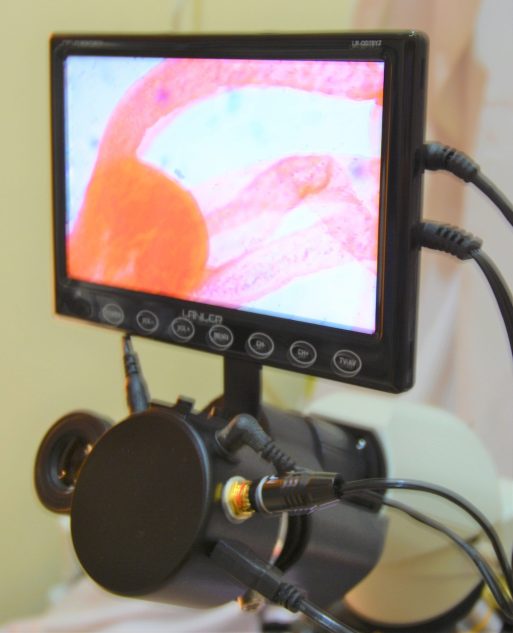

Kamera Mikroskop
– Image Sendor : 1/2″7 CMOS]
– Output : Vidio Out, USB Out
– Effective Pixels : 1920 (H) x 1080 (V), 2MP
– Scanning System : Progressive
– Electronic Shutter Speed : PAL : 1/25~1/100000s, NTSC : 1/30~1/100000s
– Minimum Illumination : 0.04Lux/F1.85, 30IRE,0Lux IR on
– Focal Length : 3.6mm (2.8mm, 6mm optional)
– Max Apperture : F1.85
– Power Supply : 12V DC
LCD 7 inch
1. 7 Inch Slim – LED monitor TV
2. Aspect ratio : 16 : 9
3. High Resolutin wide screen only
4. Video system: NTSC/PAL support, auto swicth
5. Resolution: 800 X RGB X 480 pixels
6. Input: two video input V1/V2/TV
7. Power supply : DC 12 V
8. Power consumption: 8 W
9. Brightness: 300cd/m2
10. Operating temp: 0º – 55ºC
11. Stroge temp: – 25º – 70ºC
