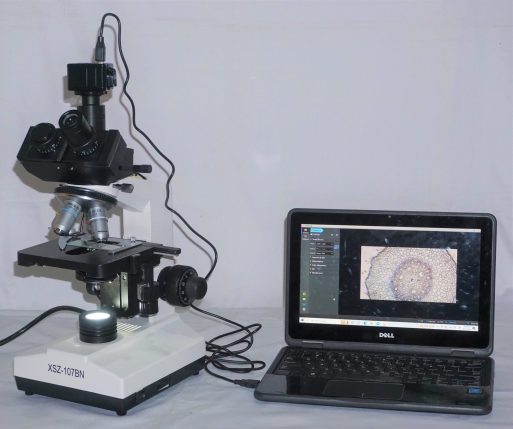

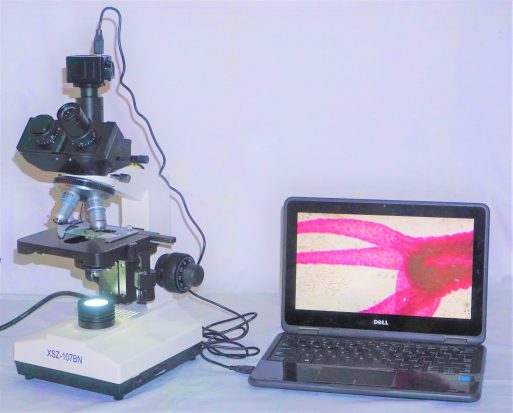

Mikroskop Trinokuler
2. Wide Field Eyepiece : WF10X, WF16X
3. Viewing head : Trinocular Head
4. Stage : double layer mechanical stage size 140X140mm,moving range 75X45mm
5. Focusing : coaxial coarse and fine adjustment , focusingr range 20mm
6. Condenser : Abbe N.A=1.25 Iris diaphragm & filter
Kamera Mikroskop
– Dimension: 50 x 55 x 40.5 mm.
– Interface: USB2.0.
– Picture Format: JPEG, BMP
– Sensor Type : IMX335 from Sony
– Size sensor : 1/2.5″ true color CMOS.
– Pixel Size: 2.2um x 2.2um.
– Frame rate: (MJPG) 2592 x 1944 @12FPS ; 2048×1536@15FPS ; 1920×1080@15FPS ;1600×1200@15FPS; 1280×720@15FPS;1280×960@15FPS;1024×768@30FPS; 800×600@30FPS;640×480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048×1536@2FPS ; 1920×1080@4FPS ;1600×1200@4FPS; 1280×720@4FPS;1280×960@4FPS;1024×768@6FPS; 800×600@15FPS;640×480@30FPS
– Auto White Balance: Yes.
– Exposure: Manual/Auto.
– Image Format: JPG/BMP/PNG/GIF.
– Video Format: AVI.
– Operating System: windowXP / win7 / win8 / win10 or above / Vista
– Supported: Capture software, driver.
– Software: Capture software, driver.
– Suitable Tube Size: C-mount or 23.2mm
